Part Number: MGN9HZ0HM

  • Slim Flange type model (MGN)
  • Heavy Load model (H)
  • Standard we have Z0 Pre Tension, perfect for CNC-Routers, 3D printers etc
  • High Precision Class (H)
  • Stainless Steel version (M) (This steel, does rust, because in order to be hardened it’s impossible to make it 100% stainless)
  • 4 x M3 Threaded hole in carriage allows mounting from above

These carriages fit the HIWIN MNGR-09 rails. This particular type is the slim flange type model(MGN). We also have a wider version thew (MGW)type.

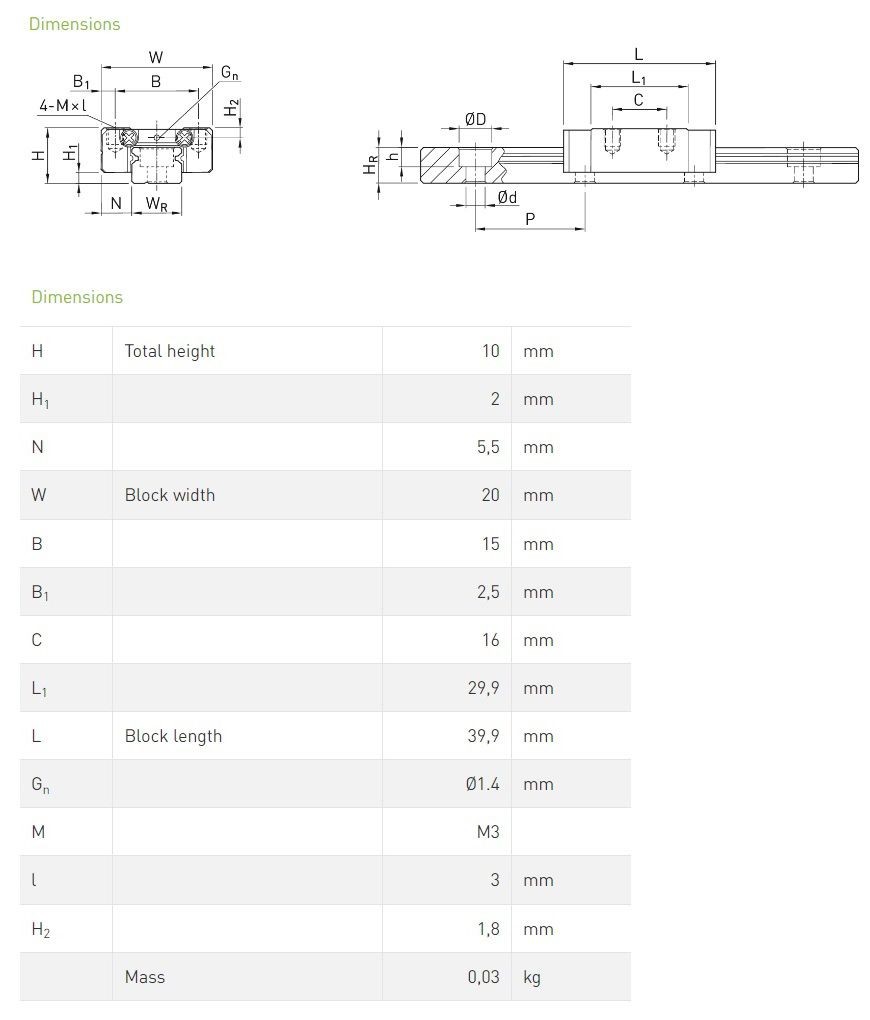

Catalog Number MGN9HZ0HM
Block Size 9 mm
Height 10 mm
Width 20 mm
Length 39.9 mm
